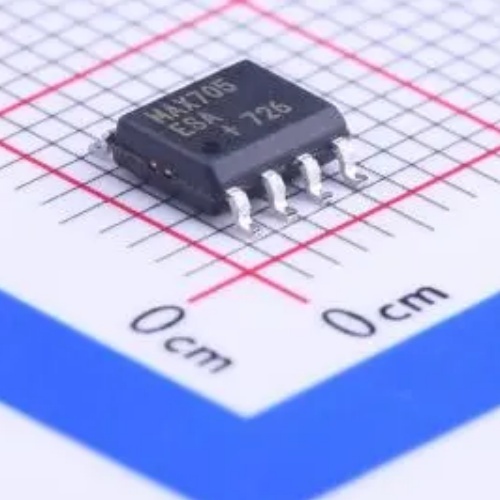

MAX705ESA+T is a precision 5 V microprocessor supervisory circuit from Analog Devices, featuring 4.65 V reset threshold (±1.5%), 1.6 s watchdog timer, manual reset input, power-fail warning, 10 µA quiescent current, and 8-lead SOIC packaging — ideal for industrial control, medical electronics, telecom infrastructure, automotive ECUs, battery-backed systems, and consumer electronics demanding fail-safe power monitoring, deterministic reset, and hardware-based system recovery.
  • MAX705ESA+T,MAX705ESA+T,OTOMO

Description

MAX705ESA+T is a precision, low-power microprocessor (µP) supervisory circuit designed and manufactured by Analog Devices Inc. (ADI) — formerly Maxim Integrated (acquired by ADI in 2021). It belongs to the industry-standard MAX70x family, engineered specifically for reliable power monitoring, reset generation, and watchdog protection in embedded systems, where guaranteed system startup integrity, brown-out detection, and fail-safe recovery are mission-critical.
The “ESA” suffix denotes the 8-lead SOIC package (3.9 mm × 4.9 mm) — a compact, surface-mount, RoHS-compliant, and widely manufacturable package; the “+T” indicates tape-and-reel packaging (2,500 units per reel), qualified for industrial temperature range (–40°C to +85°C ambient).
⚠️ Critical Clarification:
The MAX705 is not a general-purpose voltage monitor or discrete comparator. It is a fully integrated, factory-trimmed supervisory IC, featuring:
  • Precision reset threshold: 4.65 V ±1.5% (typ.), with built-in hysteresis (~200 mV) — ensuring glitch-free reset assertion during noisy or slowly rising/falling supply conditions;
  • Dedicated watchdog timer (WDT): Monitors software execution with 1.6-second timeout (±10%), configurable via external capacitor (optional extension up to ~100 s);
  • Manual reset input (MR): Active-low pushbutton-compatible pin — allows operator-initiated system reset without cycling power;
  • Power-fail comparator & reset disable: Detects falling VCC before reset threshold is crossed and provides early warning (PFO pin), plus RESET output can be disabled (RESET = high-Z) when needed (e.g., during firmware updates);
  • Ultra-low quiescent current: Only 10 µA typical — enabling use in battery-backed or energy-harvesting systems without significant drain.
It operates from a single 4.75 V to 5.5 V supply, delivers open-drain RESET and PFO outputs, and requires no external components for basic operation, making it one of the most trusted and widely deployed supervisory solutions across industrial, medical, telecom, and automotive applications.

Introduction

The MAX705ESA+T delivers enterprise-grade system reliability in a tiny, plug-and-play package:
🔹 Fail-safe boot assurance: Guarantees µP remains held in reset until VCC stabilizes above 4.65 V — preventing erratic code execution during power-up, brown-outs, or cold starts — a requirement for IEC 62368-1, UL 60950-1, and ISO 26262 ASIL-B systems;
🔹 Watchdog intelligence without firmware overhead: Hardware WDT relieves software of timing-critical health checks — automatically resets the system if firmware hangs, crashes, or enters infinite loops;
🔹 Zero-compromise robustness: Pre-tested across HTOL (1000+ hours @ 125°C), with FIT rate < 13 failures per billion hours, and qualification per JEDEC JESD22-A108 and AEC-Q100 (Grade 2) — suitable for 15+ year deployments in infrastructure and safety-critical equipment;
🔹 Plug-and-play simplicity: No configuration registers, no I²C/SPI interface, no calibration — just connect VCC, GND, RESET to µP’s reset pin, MR to button, and optionally add capacitor for extended WDT timeout.
Its 8-lead SOIC (ESA) package (3.9 mm × 4.9 mm) offers excellent thermal performance (θJA ≈ 130°C/W), compatibility with standard reflow profiles, and decades of proven field reliability — making it a de facto standard for system-level supervision.

Key Features

 Precision Power Monitoring & Reset Generation:
 • Reset threshold: 4.65 V ±1.5% (typ.), with internal hysteresis (~200 mV);
 • Reset pulse width: 200 ms minimum (typ.), guaranteed >140 ms over temperature;
 • Supply voltage range: 4.75 V to 5.5 V;
 • Quiescent current: 10 µA (typ.), 25 µA (max).
 Integrated Watchdog Timer (WDT):
 • Timeout period: 1.6 seconds (±10%), factory-set;
 • Optional extension: Add external capacitor (CWDT) to extend timeout up to ~100 s (e.g., 10 µF → ~10 s);
 • WDT trigger: Edge-sensitive on WDI pin — any transition (rising or falling) resets timer;
 • WDT disable: Pull WDI high to disable watchdog function.
 System-Level Protection & Flexibility:
 • Manual reset (MR): Active-low, debounced internally — supports momentary pushbutton (no external RC needed);
 • Power-fail comparator (PFO): Asserts when VCC drops below 4.40 V (typ.), providing early warning before RESET activates;
 • RESET output: Open-drain, active-low, capable of sinking 1.2 mA — compatible with all µPs and FPGAs;
 • RESET disable: Pull RDIS high to place RESET in high-impedance state — useful during firmware updates or debug mode.
 Robust Operation & Diagnostics:
 • ESD rating: > 2 kV HBM on all pins;
 • Operating ambient temperature: –40°C to +85°C;
 • No external components required for core functionality.
 SOIC-8 (ESA) Package & Industrial Qualification:
 • 8-Lead SOIC (3.9 mm × 4.9 mm);
 • RoHS-compliant, halogen-free;
 • JEDEC J-STD-020 moisture sensitivity level (MSL) 1 — unlimited floor life.

Typical Specification Table

Parameter Specification
Manufacturer Analog Devices Inc. (ADI)
Product Series MAX70x Family (µP Supervisory Circuits)
Model MAX705ESA+T
Function 5 V µP Supervisor with WDT, MR, PFO
Reset Threshold 4.65 V ±1.5% (typ.), hysteresis ~200 mV
Reset Pulse Width ≥ 200 ms (typ.), ≥ 140 ms (min over temp)
Watchdog Timeout 1.6 s (±10%), extendable with CWDT
Quiescent Current 10 µA (typ.), 25 µA (max)
Supply Voltage Range 4.75 V to 5.5 V
Power-Fail Threshold (PFO) 4.40 V (typ.)
Outputs Open-drain RESET (active-low), PFO (active-low)
Manual Reset (MR) Active-low, internal debounce
Package 8-Lead SOIC (3.9 mm × 4.9 mm) (ESA)
RoHS / Green Yes (Pb-free, Halogen-free)
Packaging Tape-and-Reel, 2,500 units (+T)

Typical Applications

🔹 Industrial Control Systems: PLCs, motor drives, and CNC controllers — leveraging precise reset timing and watchdog to prevent unsafe motion or data corruption during voltage sags or EMI events.
🔹 Medical Electronics: Patient monitors, infusion pumps, and diagnostic imaging subsystems — meeting IEC 60601-1 requirements for fail-safe power sequencing and automatic recovery from firmware faults.
🔹 Telecom Infrastructure: Base station radios, optical line terminals (OLTs), and network switches — where continuous uptime and deterministic boot behavior are essential for carrier-grade SLAs.
🔹 Automotive ECUs: Body control modules (BCMs), lighting controllers, and telematics units — qualified to AEC-Q100 Grade 2 and supporting ASIL-B functional safety goals via hardware reset/WDT.
🔹 Battery-Backed Systems: Real-time clocks (RTCs), SRAM keep-alive circuits, and smart meters — using ultra-low IQ to minimize backup battery drain while ensuring clean power-up.
🔹 Consumer Electronics: Smart home hubs, gaming consoles, and set-top boxes — enabling graceful recovery from power glitches and user-initiated resets without requiring full power cycle.

Development & Design Notes

🔧 PCB Layout Best Practices:
  • Place MAX705 close to the µP’s reset pin — keep RESET trace short (< 5 cm) and avoid routing near noisy signals (clocks, switching regulators);
  • Use ground guard ring around VCC and GND pins — reduces noise coupling into the precision bandgap reference;
  • Keep MR trace short and add 0.1 µF ceramic cap between MR and GND if using long button traces (> 10 cm) — suppresses ESD and EMI-induced false triggers.
🔧 Power Supply Decoupling:
  • Use 1 µF X5R ceramic capacitor directly between VCC and GND, placed within 2 mm of the IC — ensures stable internal reference and fast transient response;
  • For noisy supplies: add a 10 µF tantalum capacitor in parallel, placed near the power entry point — filters low-frequency ripple.
🔧 Watchdog Configuration & Best Practices:
  • Connect WDI to a GPIO pin that toggles regularly (e.g., every 500 ms) — ensure toggle occurs within 1.6 s window;
  • To extend WDT timeout: use CWDT = 10 nF → ~2 s, 100 nF → ~10 s, 1 µF → ~100 s — select capacitor with low leakage (X7R/X5R);
  • Never leave WDI floating — tie to VCC (to disable WDT) or drive actively.
🔧 Reset & PFO Integration:
  • Use PFO to trigger early shutdown or save critical state before RESET asserts — e.g., signal µP to flush buffers or enter safe state when VCC drops below 4.4 V;
  • For µPs with internal reset generators: tie MAX705’s RESET output to µP’s external reset input and disable internal reset — avoids race conditions.
🔧 Thermal Management & Reliability:
  • SOIC-8 has excellent thermal capability (θJA ≈ 130°C/W). No heatsink required — operates reliably in sealed enclosures up to +85°C.
  • FIT rate = 12.4 failures per billion hours, validated over 1000 h HTOL — suitable for 20+ year deployments.
