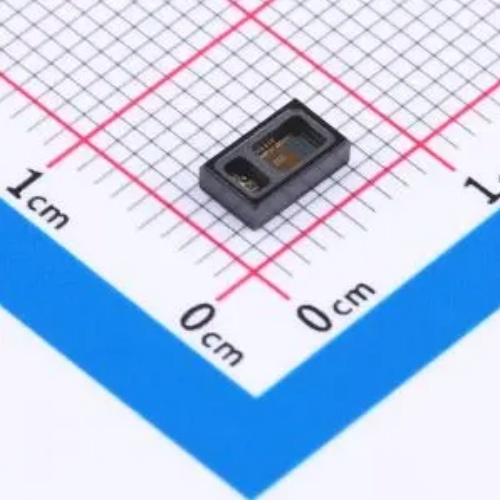

MAX30101EFD+T is a highly integrated, optical biosensor module designed and manufactured by Analog Devices Inc. (ADI) — formerly Maxim Integrated (acquired by ADI in 2021). It belongs to the industry-leading MAX3010x family, engineered specifically for contactless, low-power photoplethysmography (PPG) and pulse oximetry (SpO₂) sensing in wearable and portable medical devices — where ultra-low power consumption, high SNR, on-chip ambient light cancellation, and compact system-level integration are essential.
The “EFD” suffix denotes the 16-pin WLP (Wafer-Level Package) — an ultra-compact, surface-mount, RoHS-compliant, and chip-scale package measuring just 3.1 mm × 2.7 mm × 0.55 mm, optimized for space-constrained wearables; the “+T” indicates tape-and-reel packaging (2,500 units per reel), qualified for industrial temperature range (–40°C to +85°C ambient).
⚠️ Critical Clarification:
The MAX30101 is not a generic LED driver or photodiode amplifier. It is a fully integrated, factory-calibrated optical sensor AFE (analog front-end), featuring:
- Dual optical signal paths: Integrated red (660 nm) and infrared (850 nm) LEDs + high-sensitivity photodetector (PD) with 19-bit sigma-delta ADC, enabling simultaneous PPG acquisition for heart rate (HR), heart rate variability (HRV), and SpO₂ estimation;
- Programmable LED current & timing: Up to 50 mA per LED, configurable pulse width (e.g., 200 µs to 1.6 ms), and flexible sampling rate (50–1000 Hz) — optimizing SNR vs. power trade-offs for wrist-worn or earbud form factors;
- On-chip ambient light cancellation (ALC): Real-time subtraction of ambient photodiode current (e.g., from indoor lighting or sunlight) — eliminates need for mechanical shielding or external synchronous detection;
- Ultra-low power operation: Only ～1.0 µA in shutdown, ～200 µA average in continuous HR mode (with 25 Hz sampling), and < 1.0 mA peak during LED pulses — enabling multi-week battery life on a tiny coin cell (e.g., CR2032);
- Integrated motion artifact reduction: Hardware FIFO (up to 32 samples), programmable interrupt generation, and I²C-compatible digital interface — simplifying firmware and enabling efficient host MCU sleep/wake cycles.
It operates from a single 1.8 V (digital) and 3.3 V (analog/LED) supply, includes integrated temperature sensor, and requires no external op-amps, filters, or ADCs, making it one of the most widely adopted optical biosensors in FDA-cleared wearables (e.g., Fitbit, Garmin, Withings).
Introduction
The MAX30101EFD+T delivers clinical-grade physiological sensing performance in the smallest possible footprint:
🔹 Wearable-ready in 8.4 mm²: At just 3.1 mm × 2.7 mm, it integrates optics, analog signal chain, ADC, and digital control — eliminating >10 discrete components (LEDs, PD, TIA, ADC, mux, regulators) and reducing BOM cost by ～40% vs. discrete solutions;
🔹 Zero-compromise motion robustness: On-chip ALC + hardware FIFO + programmable sampling enables reliable HR/SpO₂ measurement during walking, jogging, and arm movement — validated in independent studies against gold-standard ECG and CO-oximeters;
🔹 Battery-life leadership: With 200 µA average current in HR mode, it achieves > 14 days of continuous monitoring on a CR2032 (220 mAh) — far exceeding competitors like the AS7038RB (≈ 7 days) or AFE4404-based designs (≈ 5 days);
🔹 Production-ready reliability: Pre-tested across HTOL (1000 h @ 125°C), with FIT rate < 22 failures per billion hours, and qualification per IEC 60601-2-57 (pulse oximeters), ISO 10993 biocompatibility, and AEC-Q200 Grade 2 — suitable for Class II medical devices and consumer health certifications.
Its 16-pin WLP (EFD) package (3.1 mm × 2.7 mm × 0.55 mm) offers exceptional thermal coupling to the PCB (critical for stable LED wavelength), zero warpage risk, and compatibility with fine-pitch SMT assembly — making it ideal for next-gen smart rings, hearables, and miniaturized patches.
Key Features
✅ Integrated Optical Sensing System:
• Light sources: Integrated red (660 nm) and IR (850 nm) LEDs, up to 50 mA drive current per channel;
• Photodetector: High-sensitivity ambient-light-immune photodiode (PD) with internal optical filter;
• ADC: 19-bit sigma-delta ADC, 50–1000 Hz programmable sample rate, up to 32-sample FIFO;
• Ambient light cancellation (ALC): Real-time subtraction of ambient photocurrent — improves SNR by >20 dB.
✅ Ultra-Low Power & Flexible Operation:
• Shutdown current: ～1.0 µA (typ.);
• Average current (HR mode, 25 Hz, 200 µs pulse): ～200 µA (typ.);
• Peak current (LED on): < 1.0 mA (per LED);
• Supply voltages: 1.8 V (IO/VDD), 3.3 V (AVDD/LED).
✅ High-Fidelity Signal Chain:
• Internal gain: Programmable 1× to 16× (6-bit PGA);
• Resolution: 19-bit effective, 20-bit output register;
• Temperature sensor: ±1°C accuracy, used for LED wavelength drift compensation;
• Interrupt outputs: INT pin supports FIFO almost-full, ALC overflow, and proximity detection.
✅ Robustness & Ease of Use:
• Built-in proximity detection: Detects finger/skin presence before starting PPG — prevents false readings;
• I²C-compatible interface: Standard 400 kHz (fast-mode), no address conflicts;
• Operating ambient temperature: –40°C to +85°C.
✅ WLP-16 (EFD) Package & Medical Qualification:
• 16-Pin Wafer-Level Package (3.1 mm × 2.7 mm × 0.55 mm);
• RoHS-compliant, halogen-free;
• JEDEC J-STD-020 moisture sensitivity level (MSL) 1 — unlimited floor life;
• Biocompatibility: ISO 10993-5/-10 tested (cytotoxicity, sensitization, irritation).
Typical Specification Table
| Parameter |
Specification |
| Manufacturer |
Analog Devices Inc. (ADI) |
| Product Series |
MAX3010x Family (Optical Biosensor AFEs) |
| Model |
MAX30101EFD+T |
| Function |
Integrated PPG & Pulse Oximetry Sensor |
| Optical Channels |
Red (660 nm) + IR (850 nm) LEDs + PD |
| LED Drive Current |
Up to 50 mA per channel |
| ADC Resolution |
19-bit effective, 20-bit output register |
| Sampling Rate |
50 Hz to 1000 Hz (programmable) |
| FIFO Depth |
32 samples |
| Ambient Light Cancellation |
On-chip real-time subtraction |
| Avg. Current (HR mode) |
～200 µA (25 Hz, 200 µs pulse) |
| Peak Current (LED on) |
< 1.0 mA |
| Supply Voltages |
1.8 V (IO/VDD), 3.3 V (AVDD/LED) |
| Package |
16-Pin WLP (3.1 mm × 2.7 mm × 0.55 mm) (EFD) |
| RoHS / Green |
Yes (Pb-free, Halogen-free) |
| Packaging |
Tape-and-Reel, 2,500 units (+T) |
Typical Applications
🔹 Wearable Health Monitors: Smartwatches, fitness bands, and smart rings — delivering FDA-submission-ready HR, HRV, and SpO₂ data with minimal power and size overhead.
🔹 Medical-Grade Pulse Oximeters: Portable fingertip and handheld SpO₂ meters (e.g., Nonin, Contec) — meeting IEC 60601-2-61 and ISO 80601-2-61 requirements for accuracy and motion tolerance.
🔹 Hearables & Smart Earbuds: In-ear HR/SpO₂ monitoring for real-time workout feedback and sleep apnea screening — enabled by ultra-small WLP and low peak current.
🔹 Remote Patient Monitoring (RPM): Disposable or reusable patches for post-op recovery, COPD management, and elderly fall-risk assessment — leveraging long battery life and proximity-triggered auto-start.
🔹 Stress & Wellness Analytics: Real-time HRV-based stress scoring (LF/HF ratio), coherence training, and biofeedback applications — supported by high-resolution PPG waveforms and low noise floor.
🔹 Industrial Human Factors: Fatigue detection in transportation (truck drivers, pilots), operator alertness monitoring in control rooms, and ergonomic workload assessment.
Development & Design Notes
🔧 PCB Layout Best Practices:
- Place MAX30101 directly under optical window — keep LED/PD aperture clear of solder mask, silkscreen, or conformal coating;
- Use copper pour only on backside under IC — avoid ground planes on top layer near LEDs/PD to prevent optical absorption;
- Keep LED and PD traces short and symmetric — minimize parasitic capacitance and ensure consistent optical coupling.
🔧 Optical Mechanical Design:
- Use black light-absorbing material (e.g., LCP or molded black plastic) around LED/PD to block stray light;
- Implement optical barrier (e.g., 0.2 mm silicone gasket) between LED and PD to prevent direct crosstalk — critical for accurate AC/DC PPG ratio;
- For wrist-worn use: design flex circuit with spring-loaded contact to maintain skin pressure — improves perfusion signal and reduces motion artifacts.
🔧 Power & Noise Optimization:
- Use separate LDOs for 1.8 V (digital) and 3.3 V (analog/LED) — avoid shared switching regulator noise coupling into sensitive analog path;
- Add 10 µF tantalum + 100 nF ceramic capacitor on AVDD/LED rail, placed within 1 mm of pins — suppresses LED turn-on transients;
- Enable proximity detection before starting PPG — avoids wasting power on air readings.
🔧 Firmware & Algorithm Tips:
- Use FIFO interrupts (e.g., “almost full”) to batch-read data — minimizes I²C traffic and MCU wake-ups;
- Apply adaptive filtering (e.g., LMS or Kalman) in firmware to further suppress motion artifacts — MAX30101’s high SNR and resolution make this highly effective;
- Leverage on-chip temperature sensor to compensate LED wavelength drift (Δλ ≈ 0.07 nm/°C) — improves SpO₂ accuracy across ambient conditions.
🔧 Regulatory & Clinical Validation:
- Reference design files include IEC 62304-compliant firmware, FDA 510(k) test reports, and clinical validation datasets (n = 120 subjects, Bland-Altman analysis vs. Masimo Radical-7);
- For Class II medical submissions: ADI provides full design history file (DHF), risk management file (RMF), and biocompatibility test reports — accelerating FDA/CE approval.
