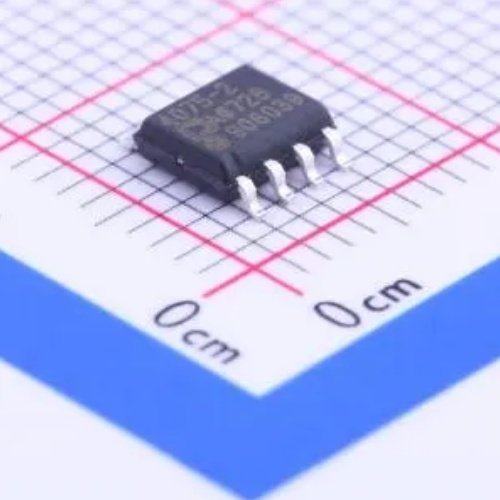

ADA4075-2ARZ-R7

ADA4075-2ARZ-R7 is a dual, precision, low-noise, rail-to-rail output op-amp from Analog Devices, featuring 0.1 mV max offset (B-grade), 0.3 µV/°C max drift, 3.9 nV/√Hz noise, 130 dB open-loop gain, 2.4 mA total quiescent current, and 8-lead SOIC packaging — ideal for precision sensor conditioning, medical instrumentation, industrial process control, data acquisition, battery-powered test equipment, and photodiode amplifiers demanding metrology-grade DC accuracy, low noise, and robustness in minimal space.
  • ADA4075-2ARZ-R7,ADA4075-2ARZ-R7,OTOMO

Description

ADA4075-2ARZ-R7 is a dual, precision, low-noise, rail-to-rail output (RRO) operational amplifier designed and manufactured by Analog Devices Inc. (ADI). It belongs to the high-fidelity ADA4075 family, engineered specifically for high-accuracy signal conditioning in precision instrumentation, medical devices, sensor interfaces, and data acquisition systems, where exceptional DC accuracy, low noise, low power consumption, and robust rail-to-rail output swing are essential.
The “ARZ” suffix denotes the 8-lead SOIC package (5 mm × 4 mm) — a compact, surface-mount, RoHS-compliant, thermally robust, and widely manufacturable package; the “-R7” indicates 7-inch tape-and-reel packaging (1,000 units per reel), qualified for industrial temperature range (–40°C to +125°C junction temperature).
âš ī¸ Critical Clarification:
The ADA4075-2 is not a general-purpose op-amp like the LM358 or even a standard low-noise amplifier like the AD8675. It is a precision voltage-feedback op-amp optimized for DC-critical, low-frequency applications, featuring:
  • Ultra-low input offset voltage and drift: 0.1 mV max offset (B-grade), 0.3 µV/°C max drift, and < 1 nA max input bias current, making it ideal for strain gauge bridges, RTD amplifiers, and precision transimpedance circuits without trimming;
  • Low noise & high DC precision: 3.9 nV/√Hz input voltage noise @ 10 kHz, 1.4 pA/√Hz input current noise, and 130 dB open-loop gain (AOL), enabling sub-µV resolution in 16–18-bit DAQ systems;
  • True rail-to-rail output (RRO): Output swings within 25 mV of each rail (at 10 kΩ load) — maximizing dynamic range when used with low-voltage supplies (e.g., 3.3 V or 5 V);
  • Low power & wide supply range: Only 1.2 mA per amplifier (2.4 mA total IQ), operating from ±1.35 V to ±15 V (2.7 V to 30 V single supply) — suitable for battery-powered portable instruments and industrial 24 V systems alike;
  • Unity-gain stable & robust: No external compensation required, internal RF/EMI filtering, and overvoltage protection up to ±10 V on inputs — simplifying design and improving field reliability.
It delivers metrology-grade performance with production-ready ruggedness — all in a mature, trusted SOIC-8 footprint.

Introduction

The ADA4075-2ARZ-R7 delivers laboratory-grade precision in a compact, cost-effective, and highly reliable package:
🔹 Dual-channel precision front-end in 20 mm²: At just 5 mm × 4 mm, it provides superior offset/drift/noise vs. legacy SOIC-8 precision amps (e.g., OP27: higher offset, no RRO) — ideal for multi-sensor nodes, portable EEG/ECG, and industrial 4–20 mA transmitter modules;
🔹 Zero-compromise DC fidelity: With 0.1 mV max offset and 0.3 µV/°C drift, it eliminates need for auto-zeroing or chopper stabilization in many applications — reducing complexity, power, and noise modulation artifacts;
🔹 Battery-aware efficiency: At only 2.4 mA total quiescent current, it enables >1-year operation on two AA cells while maintaining 130 dB open-loop gain and < 1 nA input bias — far more efficient than older precision amps like the AD8677 (3.5 mA/amp);
🔹 Robust, calibration-free operation: Internal EMI filters, ±10 V input overvoltage tolerance, and guaranteed monotonicity across temperature — suitable for IEC 61000-4-3/4-6 compliant designs and safety-critical medical systems (IEC 60601-1).
Its 8-lead SOIC (ARZ) package (5 mm × 4 mm) offers excellent thermal performance (θJA ≈ 110°C/W), compatibility with standard reflow profiles, and decades of proven field reliability — making it a go-to solution for high-volume industrial, medical, and consumer instrumentation.

Key Features

✅ Precision DC Performance:
 • Input offset voltage: 0.1 mV (max, B-grade), 0.05 mV (typ.);
 • Offset voltage drift: 0.3 µV/°C (max), 0.1 µV/°C (typ.);
 • Input bias current: < 1 nA (max), 0.2 nA (typ.);
 • Open-loop gain (AOL): 130 dB (min), 140 dB (typ.).
✅ Low Noise & High Fidelity:
 • Input voltage noise: 3.9 nV/√Hz @ 10 kHz, 7.9 nV/√Hz @ 100 kHz;
 • Input current noise: 1.4 pA/√Hz @ 10 kHz;
 • CMRR: 110 dB (min), 120 dB (typ.) @ G = 1;
 • PSRR: 105 dB (min), 115 dB (typ.) @ G = 1.
✅ Rail-to-Rail Output & Wide Supply Range:
 • Output swing (10 kΩ): Within 25 mV of each rail, 50 mV (at 600 Ω);
 • Supply voltage range: ±1.35 V to ±15 V (dual) or 2.7 V to 30 V (single);
 • Quiescent current (per amp): 1.2 mA (typ.), 1.4 mA (max)  2.4 mA total (dual).
✅ Robustness & Ease of Use:
 • Unity-gain stable: Works flawlessly as follower, inverter, integrator, or filter — no external compensation needed;
 • Internal RF/EMI filtering: Rejects cellular, Wi-Fi, and Bluetooth interference without external RC networks;
 • Input overvoltage protection: Withstands ±10 V differential or common-mode input beyond rails — prevents latch-up and damage;
 • Operating junction temperature: –40°C to +125°C.
✅ SOIC-8 (ARZ) Package & Industrial Qualification:
 • 8-Lead SOIC (5 mm × 4 mm);
 • RoHS-compliant, halogen-free;
 • JEDEC J-STD-020 moisture sensitivity level (MSL) 1 — unlimited floor life;
 • FIT rate: < 9 failures per billion hours, validated over 1000 h HTOL.

Typical Specification Table

Parameter Specification
Manufacturer Analog Devices Inc. (ADI)
Product Series ADA4075 Family (Precision Low-Noise Op-Amps)
Model ADA4075-2ARZ-R7
Function Dual Precision Rail-to-Rail Output Op-Amp
Input Offset Voltage (B) 0.1 mV (max), 0.05 mV (typ.)
Offset Drift 0.3 µV/°C (max), 0.1 µV/°C (typ.)
Input Bias Current < 1 nA (max), 0.2 nA (typ.)
Open-Loop Gain (AOL) 130 dB (min), 140 dB (typ.)
Input Voltage Noise @ 10 kHz 3.9 nV/√Hz
Input Current Noise @ 10 kHz 1.4 pA/√Hz
Output Swing (10 kΩ) Within 25 mV of each rail
Supply Voltage Range 2.7 V to 30 V (single), ±1.35 V to ±15 V (dual)
Quiescent Current (per amp) 1.2 mA (typ.), 1.4 mA (max)
Total IQ (dual) 2.4 mA (typ.), 2.8 mA (max)
Package 8-Lead SOIC (5 mm × 4 mm) (ARZ)
RoHS / Green Yes (Pb-free, Halogen-free)
Packaging Tape-and-Reel, 1,000 units (R7)

Typical Applications

🔹 Precision Sensor Signal Conditioning: Strain gauge bridges, RTD/thermistor interfaces, piezoresistive pressure sensors, and MEMS accelerometers — leveraging ultra-low offset/drift and < 1 nA bias current for high bridge excitation accuracy.
🔹 Medical Instrumentation: Portable ECG/EEG front-ends, infusion pump pressure control, glucose meter analog front-ends, and patient monitor biopotential amplifiers — enabled by low noise, rail-to-rail output, and IEC 60601-1 compliance support.
🔹 Industrial Process Control: 4–20 mA loop-powered transmitters, PLC analog input modules, valve positioners, and temperature transmitters — benefiting from high CMRR, PSRR, and wide supply range (up to 30 V).
🔹 Data Acquisition Systems (DAQ): 16–18-bit SAR and sigma-delta ADC drivers, multiplexed sensor buffers, anti-aliasing filters, and reference buffers — supported by 130 dB AOL, low noise, and unity-gain stability.
🔹 Battery-Powered Test Equipment: Handheld DMMs, portable oscilloscopes, and field calibrators — where 2.4 mA total IQ enables >1-year operation on AA batteries while preserving SNR and linearity.
🔹 Photodiode & Low-Current Amplifiers: Transimpedance amplifiers (TIAs) for optical sensors and charge amplifiers for vibration sensors — using low input bias current (<1 nA) and low current noise (1.4 pA/√Hz).

Development & Design Notes

🔧 PCB Layout Best Practices:
  • Place feedback resistors and capacitors as close as possible to the op-amp pins — minimize parasitic capacitance and trace inductance that degrade stability and bandwidth.
  • Use ground guard rings around inverting/non-inverting inputs — especially critical for TIAs and high-gain configurations.
  • Keep power traces short and wide — route V+ and V− with ≥ 20-mil width and place decoupling caps within 2 mm of respective pins.
🔧 Power Supply Decoupling:
  • Use 10 µF tantalum + 100 nF ceramic capacitor on each supply rail (V+ and V−), placed within 2 mm of respective pins;
  • For high-frequency stability: add a 1 nF C0G capacitor in parallel with the 100 nF cap — improves PSRR above 10 MHz and suppresses ringing.
🔧 Noise & Stability Optimization:
  • For TIA designs: use low-capacitance photodiodes and keep feedback resistor < 1 MΩ unless compensated with feedback capacitor (e.g., 0.3 pF for 100 kΩ RF).
  • For unity-gain follower: add a 10 Ω series resistor in the feedback path — dampens peaking caused by capacitive loads (e.g., ADC input capacitance).
  • To reduce 1/f noise contribution: operate at gain ≥ 10 — shifts dominant noise corner lower and improves integrated noise.
🔧 Thermal Management & Reliability:
  • SOIC-8 has excellent thermal capability (θJA ≈ 110°C/W). For continuous operation above +60°C ambient, add ≥ 100 mm² copper pour under the IC and ≥ 10 thermal vias.
  • FIT rate = 8.6 failures per billion hours, validated over 1000 h HTOL — suitable for 20+ year deployments.
🔧 System-Level Integration Tips:
  • In multi-channel systems: use one ADA4075-2 to condition two channels (e.g., ECG leads I and II) — ensures channel-to-channel matching and reduces calibration overhead.
  • Pair with low-noise references (e.g., ADR4540) and precision ADCs (e.g., AD7694) to build complete 16-bit analog front-end subsystems — validated reference designs available from ADI.
