AD8226ARZ-RL is a precision, low-power, rail-to-rail output (RRO) instrumentation amplifier (in-amp) designed and manufactured by Analog Devices Inc. (ADI). It belongs to the high-fidelity AD822x family, engineered specifically for accurate, low-noise amplification of small differential signals in sensor interfaces, industrial process control, medical instrumentation, and data acquisition systems, where exceptional common-mode rejection, low input bias current, wide supply range, and ease of use are essential.

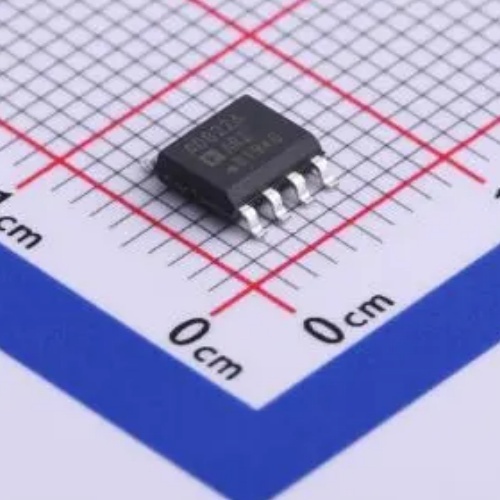

The “ARZ” suffix denotes the 8-lead SOIC package (5 mm × 4 mm) — a compact, surface-mount, RoHS-compliant, thermally robust, and widely manufacturable package; the “-RL” indicates reel packaging (1,000 units per reel), qualified for industrial temperature range (–40°C to +85°C ambient).
â ī¸ Critical Clarification:
The AD8226 is not a standard op-amp or a basic difference amplifier. It is a fully integrated, 3-op-amp topology instrumentation amplifier, featuring:
- Programmable gain via single external resistor (RG): Gain ranges from G = 1 to G = 1000, set precisely by one resistor (e.g., 100 kΩ → G = 101);
- Ultra-high common-mode rejection ratio (CMRR): 100 dB minimum (at G = 10, DC–10 Hz), 90 dB minimum up to 1 kHz, and 80 dB at 10 kHz, ensuring accurate extraction of microvolt-level signals (e.g., strain gauge outputs) even in presence of large common-mode noise (e.g., 60 Hz pickup, motor EMI);
- True rail-to-rail output (RRO): Output swings within 25 mV of each rail (at 10 kΩ load) — maximizing dynamic range when used with low-voltage supplies (e.g., 3.3 V or 5 V), critical for battery-powered devices;
- Low power & wide supply range: Only 270 µA per amplifier (typ.), operating from ±1.35 V to ±18 V (2.7 V to 36 V single supply) — enabling use in both portable sensors and industrial 24 V loop-powered transmitters;
- High input impedance & low bias current: > 10 GΩ input impedance, < 1 nA input bias current (max) — preserves signal integrity from high-impedance sources like thermocouples, piezoelectric sensors, or pH electrodes.
It requires no external capacitors for stability, supports reference pin (REF) for level-shifting output, and features excellent DC accuracy — all in a mature, trusted SOIC-8 footprint.
Introduction
The AD8226ARZ-RL delivers laboratory-grade precision instrumentation performance in a cost-effective, production-optimized package:
đš Single-resistor programmability in 20 mm²: At just 5 mm × 4 mm, it provides superior CMRR, gain accuracy, and power efficiency vs. legacy in-amps (e.g., INA128: higher IQ, no RRO) — ideal for multi-channel sensor nodes, portable gas analyzers, and industrial 4–20 mA transmitter modules;
đš Zero-compromise signal fidelity: With 100 dB CMRR at DC and < 1 nA bias current, it eliminates need for guard traces, bootstrapping, or chopper stabilization in many applications — reducing design complexity, board area, and noise modulation artifacts;
đš Battery-aware intelligence: At only 270 µA quiescent current, it enables >2-year operation on two AA cells while maintaining 100 dB CMRR and rail-to-rail swing — far more efficient than older precision in-amps like the AD620 (1.3 mA).
đš Robust, calibration-free operation: Internal RF/EMI filtering, ±10 V input overvoltage tolerance, and guaranteed monotonicity across temperature — suitable for IEC 61000-4-3/4-6 compliant designs and safety-critical medical systems (IEC 60601-1).
Its 8-lead SOIC (ARZ) package (5 mm × 4 mm) offers excellent thermal performance (θJA ≈ 110°C/W), compatibility with standard reflow profiles, and decades of proven field reliability — making it a go-to solution for high-volume industrial, medical, and consumer instrumentation.
Key Features
â
Precision Instrumentation Amplifier Performance:
• Gain range: 1 to 1000, set by single external resistor RG;
• CMRR: 100 dB (min) at G = 10, DC–10 Hz, 90 dB (min) @ 1 kHz, 80 dB @ 10 kHz;
• Input offset voltage: 100 µV (max, B-grade), 50 µV (typ.);
• Offset voltage drift: 0.3 µV/°C (max), 0.15 µV/°C (typ.).
â
Low Power & Wide Supply Range:
• Quiescent current: 270 µA (typ.), 350 µA (max);
• Supply voltage range: ±1.35 V to ±18 V (dual) or 2.7 V to 36 V (single);
• Output swing (10 kΩ): Within 25 mV of each rail, 50 mV (at 600 Ω).
â
High Input Impedance & Robustness:
• Input impedance: > 10 GΩ (differential and common-mode);
• Input bias current: < 1 nA (max), 0.3 nA (typ.);
• Input overvoltage protection: Withstands ±10 V beyond rails — prevents latch-up and damage.
â
Ease of Use & Flexibility:
• Reference pin (REF): Enables output level-shifting (e.g., to match ADC input range);
• No external compensation required — unity-gain stable and internally compensated;
• Operating ambient temperature: –40°C to +85°C.
â
SOIC-8 (ARZ) Package & Industrial Qualification:
• 8-Lead SOIC (5 mm × 4 mm);
• RoHS-compliant, halogen-free;
• JEDEC J-STD-020 moisture sensitivity level (MSL) 1 — unlimited floor life;
• FIT rate: < 9 failures per billion hours, validated over 1000 h HTOL.
Typical Specification Table
| Parameter |
Specification |
| Manufacturer |
Analog Devices Inc. (ADI) |
| Product Series |
AD822x Family (Precision Instrumentation Amplifiers) |
| Model |
AD8226ARZ-RL |
| Function |
Precision Rail-to-Rail Output In-Amp |
| Gain Range |
1 to 1000 (set by RG) |
| CMRR (G=10, DC–10 Hz) |
100 dB (min), 110 dB (typ.) |
| Input Offset Voltage (B) |
100 µV (max), 50 µV (typ.) |
| Offset Drift |
0.3 µV/°C (max), 0.15 µV/°C (typ.) |
| Input Bias Current |
< 1 nA (max), 0.3 nA (typ.) |
| Quiescent Current |
270 µA (typ.), 350 µA (max) |
| Supply Voltage Range |
2.7 V to 36 V (single), ±1.35 V to ±18 V (dual) |
| Output Swing (10 kΩ) |
Within 25 mV of each rail |
| Package |
8-Lead SOIC (5 mm × 4 mm) (ARZ) |
| RoHS / Green |
Yes (Pb-free, Halogen-free) |
| Packaging |
Reel, 1,000 units (RL) |
Typical Applications
đš Precision Sensor Signal Conditioning: Strain gauge bridges, load cells, pressure transducers, and torque sensors — leveraging ultra-high CMRR, low bias current, and single-resistor gain setting for factory-calibrated accuracy.
đš Medical Instrumentation: Portable ECG/EEG front-ends, patient monitors, glucose meters, and spirometers — enabled by low noise, rail-to-rail output, and IEC 60601-1 compliance support.
đš Industrial Process Control: 4–20 mA loop-powered transmitters, PLC analog input modules, valve positioners, and temperature transmitters — benefiting from wide supply range (up to 36 V), high CMRR, and low power.
đš Data Acquisition Systems (DAQ): 16–18-bit SAR and sigma-delta ADC drivers, multiplexed sensor buffers, and anti-aliasing filters — supported by excellent DC specs and unity-gain stability.
đš Battery-Powered Test Equipment: Handheld DMMs, portable oscilloscopes, and field calibrators — where 270 µA IQ enables >2-year operation on AA batteries while preserving SNR and linearity.
đš Thermocouple & Low-Level Signal Amplifiers: Cold-junction compensation circuits, RTD interfaces, and piezoelectric vibration sensors — using high input impedance (>10 GΩ) and low bias current (<1 nA) to avoid loading errors.
Development & Design Notes
đ§ PCB Layout Best Practices:
- Place RG as close as possible to pins 1 and 8 — minimize parasitic capacitance and trace inductance that degrade CMRR and stability.
- Use ground guard rings around inverting/non-inverting inputs — especially critical for high-gain configurations and high-impedance sensors.
- Keep power traces short and wide — route V+ and V− with ≥ 20-mil width and place decoupling caps within 2 mm of respective pins.
đ§ Power Supply Decoupling:
- Use 10 µF tantalum + 100 nF ceramic capacitor on each supply rail (V+ and V−), placed within 2 mm of respective pins;
- For high-frequency stability: add a 1 nF C0G capacitor in parallel with the 100 nF cap — improves PSRR above 10 MHz and suppresses ringing.
đ§ Noise & CMRR Optimization:
- For best CMRR: ensure matched layout symmetry between IN+ and IN− traces — equal length, same layer, same adjacent planes;
- Use Kelvin (4-wire) connections for RG if precision gain is critical — avoids PCB trace resistance errors;
- To reduce 1/f noise contribution: operate at gain ≥ 10 — shifts dominant noise corner lower and improves integrated noise.
đ§ Thermal Management & Reliability:
- SOIC-8 has excellent thermal capability (θJA ≈ 110°C/W). For continuous operation above +60°C ambient, add ≥ 100 mm² copper pour under the IC and ≥ 10 thermal vias.
- FIT rate = 8.6 failures per billion hours, validated over 1000 h HTOL — suitable for 20+ year deployments.
đ§ System-Level Integration Tips:
- In multi-channel systems: use one AD8226 to condition two channels (e.g., dual bridge sensors) — ensures channel-to-channel matching and reduces calibration overhead.
- Pair with low-noise references (e.g., ADR4540) and precision ADCs (e.g., AD7694) to build complete 16-bit analog front-end subsystems — validated reference designs available from ADI.
- Use REF pin to shift output to mid-supply (e.g., VCC/2) when interfacing with single-supply ADCs — simplifies signal conditioning and avoids clipping.
