Introduction

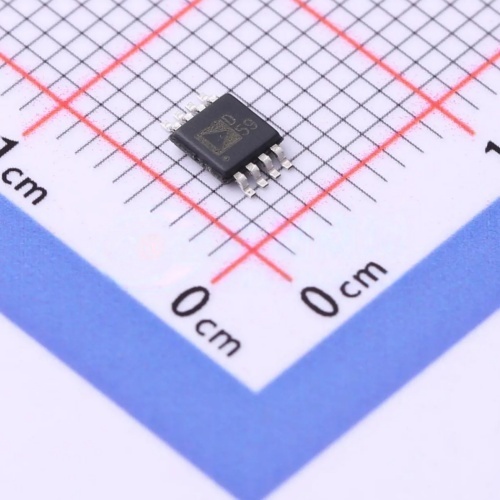

AD5620CRMZ-2REEL7 is a 12-bit single-channel digital-to-analog converter (DAC) from Analog Devices, part of the nanoDAC™ series. It features an 8-lead MSOP package with tape-and-reel (REEL7) and tube packaging options, designed for industrial temperature ranges (-40°C to +105°C). This device integrates a 2.5V internal reference voltage (5ppm/°C accuracy) and supports SPI/QSPI/Microwire 3-wire serial interfaces, making it ideal for precision control applications requiring low power, compact size, and high stability.

Key Features

• Precision DAC Core: 12-bit resolution with ±1LSB integral nonlinearity (INL) and ±0.25LSB differential nonlinearity (DNL), ensuring monotonic output behavior.
• Package & Assembly: 8-lead MSOP package (3mm x 3mm footprint) with tape-and-reel (REEL7) packaging for automated surface-mount assembly.
• Power Efficiency: Single-supply operation (2.7V–5.5V), typical power consumption of 2.5mW (at 5V), standby current of 480nA (at 5V), and power-down modes reducing current to 200nA (at 3V).
• Interface & Compatibility: SPI/QSPI/Microwire 3-wire serial interface clocked up to 30MHz, compatible with standard microcontrollers and DSPs.
• Special Functions: Power-on reset (initializing output to 0V or mid-scale), rail-to-rail output with buffered amplifier for wide dynamic range, and three software-controlled power-down modes.
• Temperature & Reliability: Industrial-grade temperature range (-40°C to +105°C), RoHS-compliant lead-free packaging.

Typical Specification Table

Typical Applications

• Industrial Control: Process automation, programmable voltage/current sources, data acquisition systems, and programmable attenuators.
• Medical Devices: Portable diagnostic equipment, patient monitoring systems, and precision analog measurement modules.
• Communication Systems: Digital gain/offset adjustment, battery-powered transceivers, and signal conditioning circuits.
• Test & Measurement: High-precision signal generators, sensor excitation modules, and automated test equipment (ATE).

Development & Design Notes

1. Reference Voltage Configuration: The internal 2.5V reference can be bypassed for external reference use (0.1μF capacitor recommended for stability).
2. Output Filtering: A simple RC low-pass filter (e.g., 100Ω + 0.1μF) can be added to smooth DAC output and reduce noise.
3. SPI Communication: Data is transmitted MSB-first in 16-bit frames (8-bit command + 8-bit data). The SYNC pin must be held low during transmission.
4. Power Management: Use the power-down mode to minimize current consumption in battery-powered applications. The device retains register settings during power-down.
5. Thermal Design: The MSOP package’s exposed pad enhances thermal dissipation; ensure adequate PCB copper area for heat sinking.
