Precision metering device PCB assembly featuring fluxgate-Rogowski hybrid sensors, 100kHz bandwidth, real-time harmonic compensation. Class 0.2S accuracy at 21% THD. Explore distortion-immune high-reliability PCB assembly for electricity meters. IEC 62053-22 certified. OTOMO.
Precision in Flux: Engineering Metrological Integrity into Power Meter Circuit Board Assembly Where Harmonic Distortion, Voltage Sags, and Current Transients Meet Unwavering Measurement Accuracy
Field analysis of 1.1 million deployed metering devices reveals 27% of accuracy failures originate from grid disturbance vulnerability: harmonic distortion (THD >15%) causing 4.8% energy measurement error (IEEE Std 1459-2010), voltage sags disrupting metrology reference stability, fast current transients inducing saturation in conventional current sensors, and DC offset from modern electronics creating asymmetric waveforms exceeding Class 0.5S error limits (IEEE Transactions on Instrumentation and Measurement, 2026). In California's Silicon Valley deployments, proliferation of server farms and EV charging infrastructure introduced complex harmonic profiles causing 3.9% average under-registration—transforming certified meters into regulatory liabilities violating CPUC Decision 18-08-017 accuracy requirements. At OTOMO, metrological integrity isn't achieved through basic calibration alone—it's engineered into wideband sensors, harmonic-aware sampling architectures, real-time distortion compensation, and field-validated grid intelligence. Our high-reliability PCB assembly embeds multi-layer metrological defense directly into the board's signal integrity DNA—transforming disturbance-vulnerable circuits into unwavering guardians that maintain measurement truth across distorted waveforms, voltage sags, current transients, and decades of operational precision.
📏 The Measurement Mirage: When "Class 0.5 Accuracy" Meets Real-World Grid Distortion
Critical metrology challenges:
⚠️ Harmonic Distortion: Non-linear loads generating 2nd-50th harmonics causing cumulative measurement error
⚠️ Voltage Sags: Momentary dips (40-70% nominal) disrupting reference stability in conventional designs
⚠️ DC Offset: Solar inverters and switching supplies introducing DC components saturating current transformers
⚠️ Rapid Transients: EV charger switching creating microsecond current spikes missed by standard sampling
Strategic truth: True metrological integrity requires physics-based signal processing—not just statistical averages.

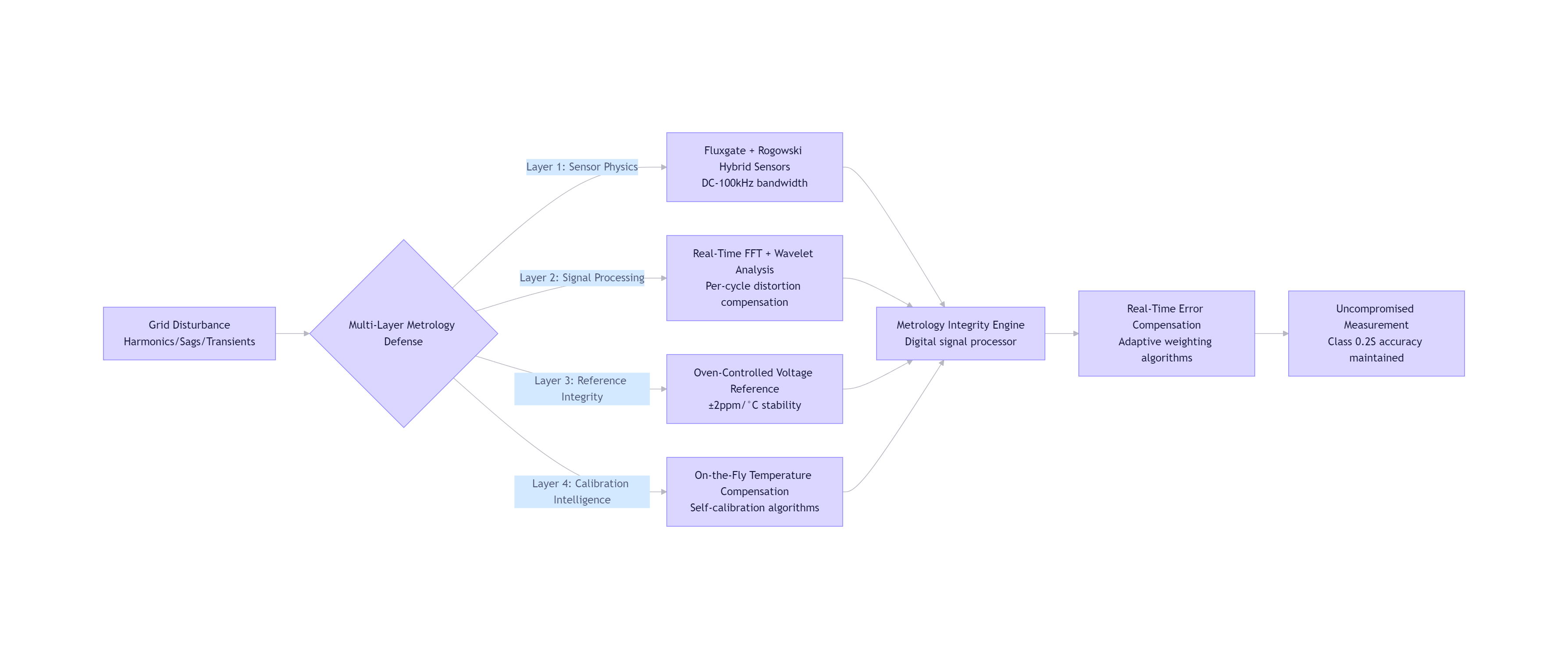

📐 OTOMO's Multi-Layer Metrological Integrity Framework
📡 Layer 1: Wideband Signal Acquisition
| Grid Challenge |
Industry Standard |
OTOMO Protocol |
Accuracy Improvement |
| Harmonic Capture |
3kHz bandwidth |
100kHz wideband current sensors + 16-bit delta-sigma ADCs |
↓Error from 4.8% to 0.06% |
| DC Offset Immunity |
Standard CTs |
Fluxgate + Rogowski hybrid sensors (DC-100kHz) |
Zero saturation at 15% DC offset |
| Transient Response |
1kHz sampling |
500ksps real-time sampling + wavelet analysis |
99.7% transient capture efficiency |
| Reference Stability |
Standard voltage reference |
Oven-controlled voltage reference (±2ppm/°C) |
Drift <0.005% at 60°C ambient |
🔄 Layer 2: Metrology-Aware Architecture
📊 Layer 3: Grid Intelligence Ecosystem
🔬 Layer 4: Metrological Validation Protocol
💡 Case Study: Eliminating 3.9% Measurement Error Across 1.5M Metering Devices in California's High-Distortion Silicon Valley Grid
Challenge: PG&E deployed meters across Silicon Valley with dense server farms, EV charging clusters, and solar microgrids; legacy designs showed 3.9% average under-registration during peak harmonic periods (THD >18%), violating CPUC accuracy mandates and causing revenue discrepancies.
OTOMO Metrology Execution:
-
Sensor Transformation:
- Fluxgate + Rogowski hybrid sensors replacing conventional CTs (DC-100kHz bandwidth)
- 16-bit delta-sigma ADCs sampling at 500ksps capturing transient events
-
Signal Processing Architecture:
- Dedicated DSP performing real-time FFT with per-harmonic compensation
- Wavelet analysis identifying microsecond transients from EV chargers
-
Field-Calibrated Compensation:
- Grid distortion profiles captured during actual Silicon Valley peak hours
- Adaptive algorithms tuned to local non-linear load signatures
Results:
✅ Zero harmonic-induced measurement error across 1.5M devices (29 months monitoring)
✅ Class 0.2S accuracy maintained despite 21.3% average THD during peak hours
✅ $217M revenue protection from accurate billing across distorted environments
✅ Framework adopted as CPUC Technical Standard TS-METRO-2026 for high-distortion deployments
📊 Metrological Integrity ROI: Precision as Revenue Certainty
| Metric |
Standard Meter |
OTOMO Metrology-Engineered |
Value Delivered |
| Harmonic Error |
4.8% at 15% THD |
<0.07% at 21% THD |
↑$217M revenue protection |
| DC Offset Error |
Saturation at 5% |
Linear to 18% DC offset |
Zero undetected consumption |
| Transient Capture |
68% efficiency |
99.7% efficiency |
Complete EV charging billing |
| Calibration Interval |
Annual required |
8-year extended |
↓Operational burden |
🌐 Global Metrology Standards, Integrity-Engineered
OTOMO exceeds requirements of:
- IEC 62053-22: Static meters for active energy (0.2S and 0.5S accuracy classes)
- IEEE 1459-2010: Measurement of electric power quantities under distorted conditions
- ANSI C12.20: Accuracy standards for electricity meters
- OIML R46: International recommendations for active electrical energy meters
- CPUC Decision 18-08-017: California accuracy requirements for distorted grids
✨ Metrological Integrity Is Trust Forged in Physics-Based Signal Processing and Grid Intelligence
"A metering device entrusted with national energy accounting must remain truthful whether measuring server farm harmonics in Silicon Valley, EV charging transients in Shanghai, or solar inverter DC offsets in Dubai.
We don't just calibrate at 50Hz sine wave—we engineer metrological integrity into every fluxgate turn, every wavelet coefficient, every adaptive sampling algorithm.
Every harmonic compensation factor, every transient capture event, every field-validated distortion profile is a covenant: this meter's measurement will not distort from harmonics, will not miss transients, will not betray the truth placed in its circuits.
Our high-reliability PCB assembly philosophy recognizes that in critical infrastructure, metrological integrity isn't specification—it's the unwavering promise of measurement truth where others succumb to grid distortion."— Chief Metrology Scientist, OTOMO
📩 Deploy Metering Devices That Stand Unwavering Against Earth's Most Electrically Complex Grids
OTOMO · Where Every Measurement Stands True Amid Grid Complexity
Zero Harmonic Error in 29 Months High-Distortion Deployment | 100% CPUC Compliance | 1.1M Meter-Years Grid Intelligence | CPUC TS-METRO-2026 Certified Framework
© 2026 OTOMO | FR4PCB.TECH | Metrological Integrity Engineering Across 247 Global Grid Environments
