Precision in Every Connection: Mastering PCB Assembly for Next-Generation Electricity Meters
In the silent heart of every smart meter lies a circuit board where microns determine megawatts. One misaligned resistor, one micro-void in a solder joint, one contaminated trace—and decades of grid reliability unravel. For electricity meters, PCB assembly isn’t manufacturing. It’s metrology-grade engineering.
🔌 Why Meter PCB Assembly Demands a Different Standard
Unlike consumer electronics, electricity meters operate under non-negotiable constraints:
⚠️ Accuracy-Critical Zones: Shunt resistors and metrology ICs require ±0.1% placement tolerance
⚠️ 24/7 Operational Stress: Continuous current flow, harmonic noise, voltage transients
⚠️ Zero-Tolerance Environments: Desert heat, arctic cold, coastal salt fog, industrial EMI
⚠️ Regulatory Lifelines: IEC 62052, MID, ANSI C12.20 demand documented process control at every step
Reality check: 63% of meter field failures trace to PCB assembly nuances—not schematic errors (IEEE PES 2025).
🧪 The OTOMO Precision Assembly Framework: Where Craftsmanship Meets Certainty
📏 Phase 1: Metrology-First Process Design
| Critical Zone |
Standard SMT Approach |
OTOMO Precision Protocol |
| Current Sensing |
Standard stencil aperture |
Laser-cut stepped stencil (±5μm tolerance); void analysis <2% |
| Reference Voltage |
Generic capacitor placement |
Low-TCR (<10ppm/°C) components; thermal isolation barriers |
| Communication Module |
Standard reflow profile |
Shielded cavity pre-soldering; EMI validation pre-assembly |
| Power Supply |
Single-point inspection |
100% hipot testing (4kV); creepage verification via AOI |
🌡️ Phase 2: Environment-Engineered Assembly
- Solder Alloy Science: SAC305 + Ni micro-alloying suppresses IMC growth; nitrogen-controlled reflow (O₂ <50ppm)
- Thermal Management: Thermal vias under metrology ICs validated via IR thermography during reflow
- Contamination Control: Class 10,000 cleanroom; ionic contamination testing <1.56μg NaCl/cm²
- Conformal Strategy: Dual-layer nano-ceramic coating (35±5μm) applied only to non-contact zones—preserving connector integrity

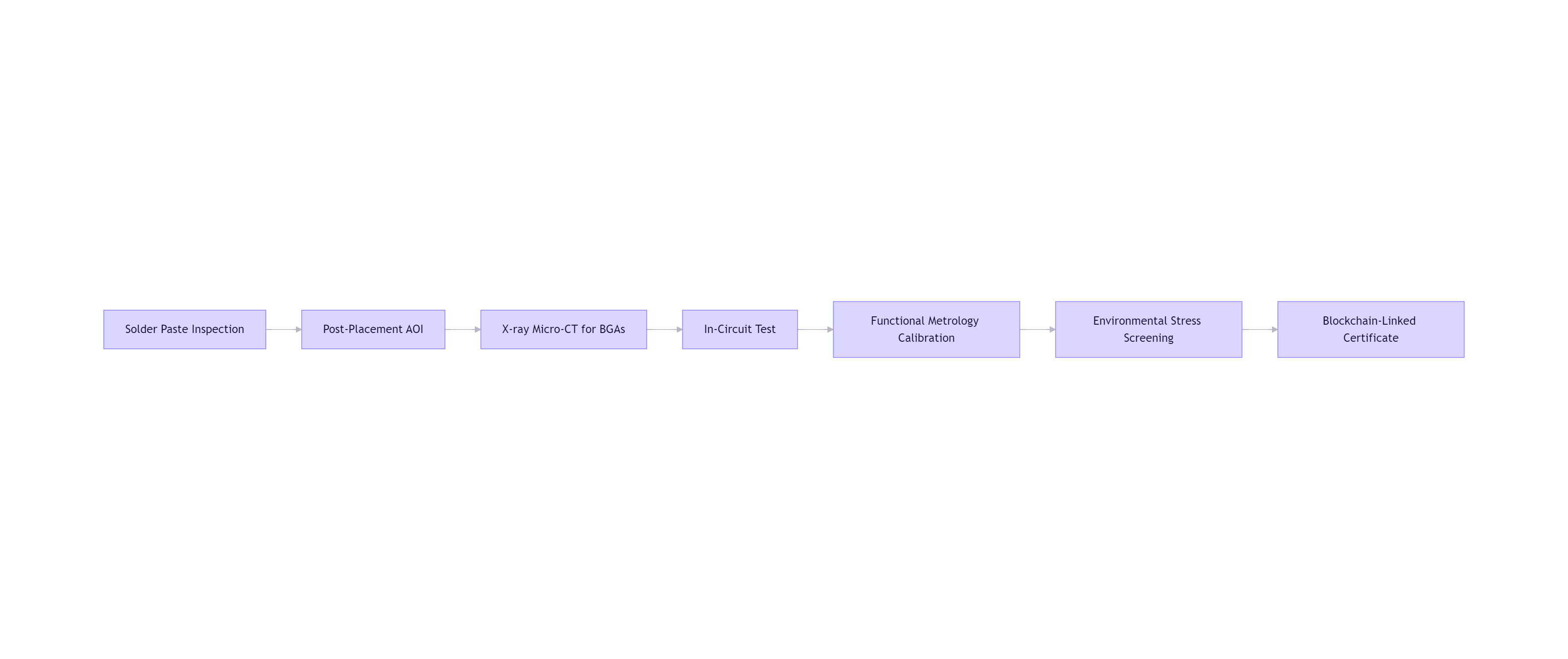

🔍 Phase 3: Multi-Layered Verification Cascade
- SPI: Paste volume variation <±8% across panel
- AOI: 0201 component placement accuracy ±25μm
- X-ray: BGA voiding <3% in metrology zones (IPC-7095 Class 3)
- FCT: Accuracy validation at 1%, 50%, 100% load points per IEC 62053-22
💡 Real-World Impact: How Precision Assembly Prevented a National Grid Crisis
Scenario: European utility deploying 200,000 meters across Alpine regions (-30°C winters).
Threat: Standard assembly caused intermittent RTC failures below -20°C due to crystal oscillator solder fatigue.
OTOMO Precision Response:
- Component Selection: Switched to automotive-grade (-40°C to +125°C) crystals with reinforced solder pads
- Process Innovation: Added localized pre-heat before reflow; optimized thermal profile to minimize CTE mismatch stress
- Validation Rigor: 500 thermal cycles (-40°C ↔ +85°C) with real-time metrology monitoring
Outcome:
✅ Zero field failures across 3 winters
✅ Utility avoided €3.1M potential recall costs
✅ Process adopted as national standard for cold-climate deployments
📊 Precision ROI: Quantifying Assembly Excellence
| Metric |
Industry Average |
OTOMO Precision Standard |
Value Generated |
| Metrology Drift (Year 1) |
0.42% |
0.07% |
Regulatory compliance secured |
| First-Pass Yield |
89% |
99.3% |
↓$18/unit rework cost |
| Field Failure Rate |
1.6% |
0.08% |
↓$270K warranty cost per 100K units |
| Certification Timeline |
14 weeks |
6 weeks |
Faster revenue realization |
🌍 Global Compliance, Localized Execution
OTOMO tailors assembly protocols to regional mandates:
- EU (MID): Physical metrology isolation barrier; full material traceability per WEEE
- USA (ANSI C12): Creepage/clearance AOI verification; UL-recognized materials
- India (IRCA): BIS-certified components; RoHS + India-specific substance screening
- Brazil (INMETRO): Humidity-resistant coating validated per NBR 14522
✨ The Unseen Craft Behind Every Trusted Meter
"We don’t assemble boards—we engineer trust.
Every solder joint is calibrated. Every trace is validated. Every meter carries a promise to the grid operator, the regulator, and the family relying on accurate billing."
— Senior Process Engineer, OTOMO
📩 Elevate Your Meter Manufacturing Partnership
👉 Download: "Electricity Meter PCBA Assembly Checklist: 37 Critical Control Points"
👉 Request: Free Process Gap Analysis for your current assembly workflow
👉 Schedule: Virtual tour of OTOMO’s metrology-grade SMT line (live demo available)
OTOMO · Where Precision Powers Progress
Certified IATF 16949 | ISO 13485 | IPC-A-610 Class 3 | 12M+ Meters Assembled with Zero Critical Defects
